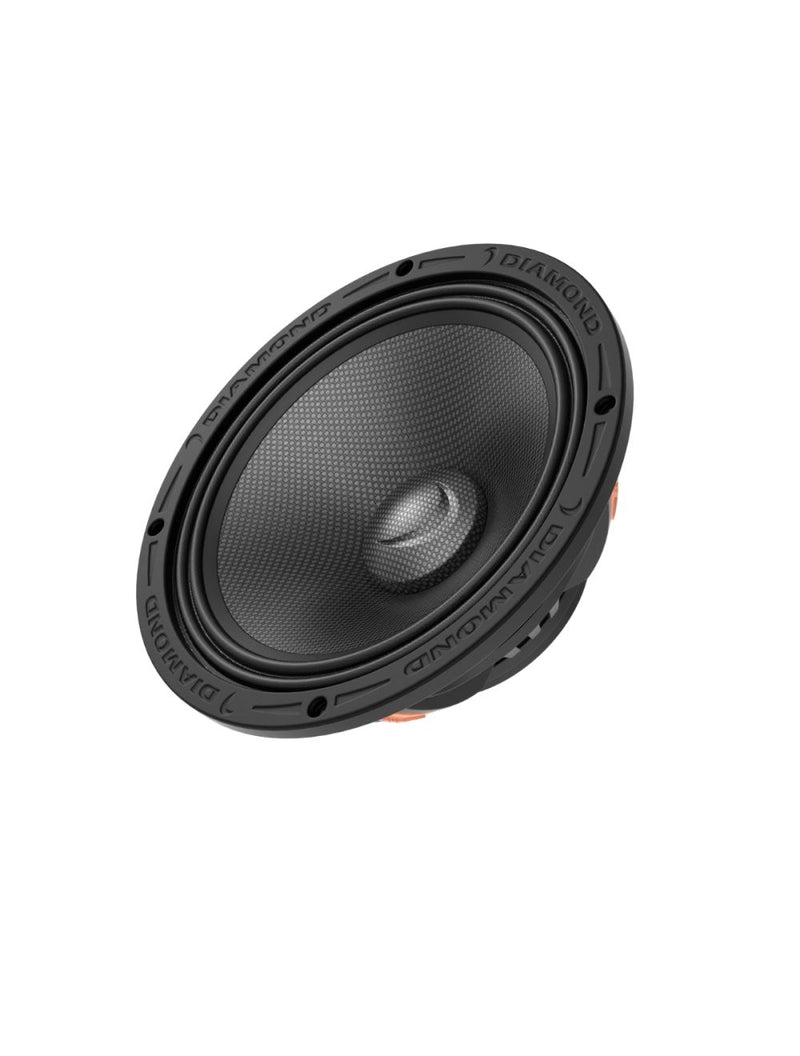

DIAMOND AUDIO MS8NEO - 8" Motorsport High Output Neo Midrange

DIAMOND AUDIO MS8NEO - 8" Motorsport High Output Neo Midrange

DIAMOND AUDIO MS8NEO - 8" Motorsport High Output Neo Midrange

Roll over image to zoom in

DIAMOND AUDIO MS8NEO - 8" Motorsport High Output Neo Midrange

DIAMOND AUDIO MS8NEO - 8" Motorsport High Output Neo Midrange

DIAMOND AUDIO MS8NEO - 8" Motorsport High Output Neo Midrange

DIAMOND AUDIO MS8NEO - 8" Motorsport High Output Neo Midrange

Share this product

Features:

350 W RMS/700W MAX Power Handling
Sensitivity: 96dB 1W/M
Frequency Response: 90Hz - 10kHz
Nominal Impedance: 4 ohm
Mounting Depth: 3.15” (80 mm)
Cut-out Diameter: 7.0” (178 mm)
Over-All Diameter: 8.26” (210 mm)
Over-All Height: 3.5” (89.2 mm)
Heavy Duty Industrial Cast Aluminium Basket
Waterproof Black DUPONT™ Kevlar Cone
Neodymium Magnet Motor Structure
US manufactured 2” Black High Temperature Coated Voice Coil.

Speaker Size	8“
Nominal Diameter (inch/mm)	8.268" (210mm)
Description	8” Neodymium MidRange Speaker
Nominal Impedance (ohms)	4Ω
RMS Power Rating	350W
Max Power Rating	700W
Frequency Response	90Hz-10kHz
Voice Coil Diameter (inch/mm)	2"
Power Handling (RMS/Peak)	350W/700W
SPL (db)	96dB
Re (Ω)[series]	3.2
Qms	8.728
Qes	0.57
Qts	0.535
Fs-Free Air Resonance (Hz)	100
Vas (Liter)	10.3
Cms (mm/N)	0.153
Mms (g)	17.6
Sd (cm²)	0.0217
BL (T*M)	7.997
Xmax - Inch(mm)	1.2
Pwr (W) NOM/MAX	350W/700W
Total Diameter	8.268'' (210mm)
Mounting Diameter (inch/mm)	7.008'' (178mm)
Mounting Depth	3.15'' (80mm)
Total Depth	3.512''(89.2mm)
Grille	NO
