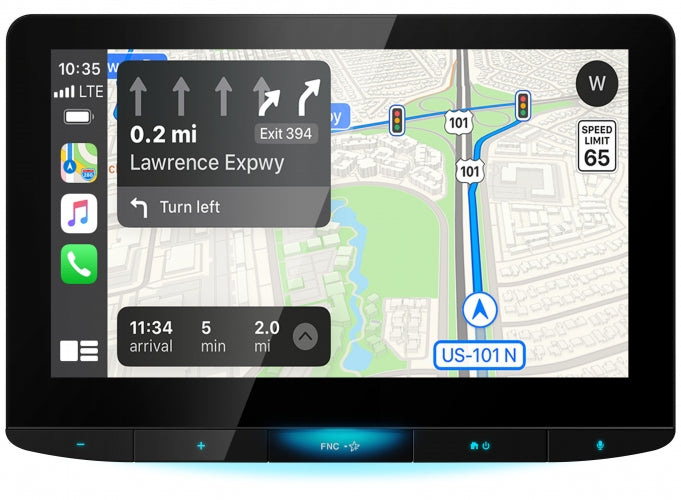

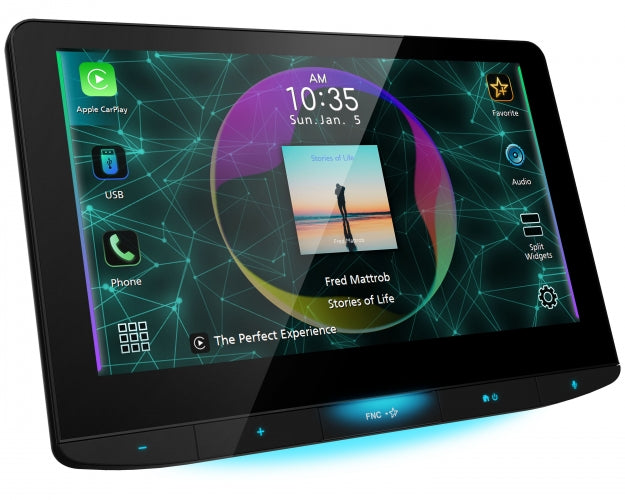

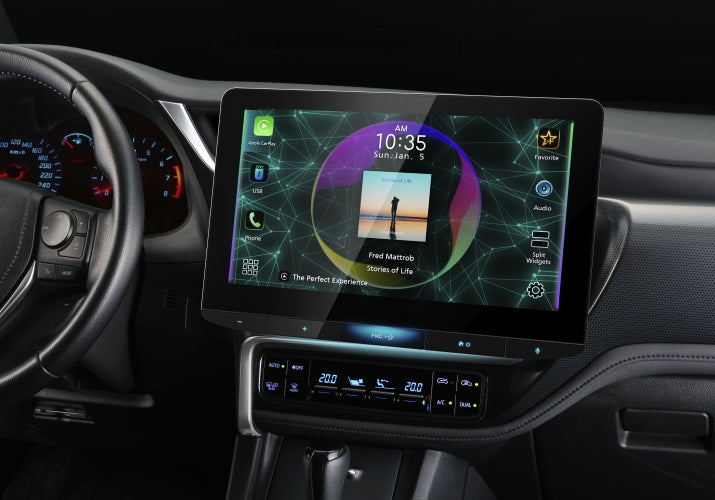

JVC KW-Z1000W Monitor with Receiver
JVC KW-Z1000W Monitor with Receiver
Couldn't load pickup availability
Digital Media Receiver featuring 10.1" HD Screen / Wireless Apple CarPlay / Wireless Android Auto / HDMI Input / 4-Cam Input / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth® / 13-Band EQ
4-Camera Input
Enables users to add a reverse (rear facing) camera, front camera and an additional 2 blindspot cameras, further enhancing driver safety and convenience.
Sound Optimization
High-Resolution Audio Playback
You can enjoy playback of 96kHz/24bit audio which contains about 3 times the musical information of music CDs (44.1kHz/16bit), or even 192kHz/24bit High-Resolution Audio files with their approx. 6.5 times data volume. With high sound quality approaching the original master recording itself, you will experience the presence and ambience of a tune the way CD simply cannot.
High-Quality Bluetooth® Streaming with LDAC™
LDAC™ sends approximately three times more data (at the maximum 990kbps transfer rate) than conventional Bluetooth® audio for superior wireless listening. Unlike other Bluetooth compatible coding technologies such as SBC, it operates without any down-conversion of the Hi-Res Audio content *1, and allows approximately three times more data *2 than those other technologies to be transmitted over a Bluetooth wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.
*1 Excluding DSD format contents.
*2 In comparison with SBC (Subband Coding) when the bitrate of 990kbps (96/48kHz) or 909kbps (88.2/44.1kHz) is selected.
K2 Technology for Enhanced Digital Sound Quality
K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Internet Radio/Digital Radio
SiriusXM Ready
(optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
Built-in HD Radio Tuner
HD Radio is a Digital technology that allows a radio station to transmit more information in the same radio wave, enabling higher quality sound and additional content. HD Radio technology makes AM Stations have FM Station-like sound quality, while FM Stations are broadcast with CD-like sound quality. Unlike typical FM or AM transmission, HD Radio has crystal clear reception with low noise and no audio distortion.
Bluetooth® Wireless Technology
2 Phones Full-Time Connection
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.
JVC Streaming DJ
Connect up to 5 Bluetooth devices simultaneously, so you and your friends can take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.
iPhone®/Android™ Bluetooth Automatic Pairing
Just connect your iPhone or Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Bluetooth Voice Recognition Improved Sound Quality with HFP 1.7 Wideband Speech
Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.
Bluetooth AVRCP1.7 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
General
JVC Portal App Compatible
Display the image data saved on your smartphone on the KW-Z1000W with JVC Portal App now available for both iOS and Android. You can set your favorite image on the wallpaper of the receiver and enjoy the slide show.
*JVC Portal App
For more information, visit here.
JVC Remote Control App
Control the music directly from the smartphone using simple finger gestures with "JVC Remote S" app* now available for both iOS and Android.
Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.
DETACHABLE USB with High Current 1.5A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A. Single rear USB port with detachable extension cable included.
*Compatibility depends on the smartphone.
5.0V High-Voltage 3 Pre-Outs
Equipped with three RCA terminals for pre-outs with 5.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
Remote Control (Optional)
Remote control (RM-RK258) is optionally available.
-
KW-Z1000W
Monitor
- High Definition Monitor
- Yes
- Screen Size
- 10.1"W HD Screen
- Touch Panel
- Capacitive / Bonding
- Gesture Touch Control
- Yes
- Customizable GUI
- Yes
- Key Illumination Color
- Variable
- Dimmer
- Yes
- Multilingual Display
- Yes[4]
- Wallpaper Capture
- Yes
- Live Wallpaper
- Yes
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB( Up to192kHz/24bit )
- DSD Compatible with Tag
- USB
- H.264 Compatible
- USB
- WMV Compatible
- USB
- MPEG 1/2 Compatible
- USB
- MPEG 4 Compatible
- USB
- AVI/MKV Compatible
- USB
- JPEG File Playback
- USB
- PNG File Playback
- USB
- BMP File Playback
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Version 5.0, Wired-Mic included)
- Hands Free Call
- Yes (HFP1.7 Wideband Speech)
- 2 Phones Full-Time Connection
- Yes
- Audio Streaming & Control (A2DP, AVRCP)
- Yes
- Supported Audio Formats
- LDAC / AAC / SBC
- 5 BT-Audio Connection
- Yes
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
- Alphabetical Search for Phone Book
- Yes
- Auto Pairing for iPhone/Android
- Yes
Wi-Fi Control
- Built-in Wi-Fi
- Yes
Android Control

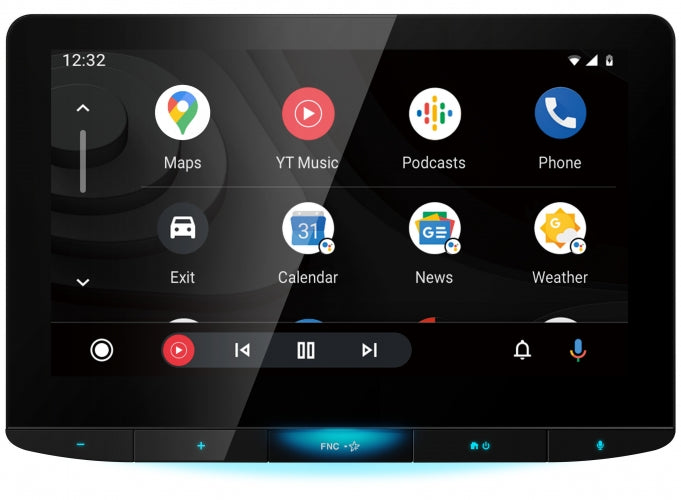

- Android Auto[2]
- Yes (via Wi-Fi or USB)
- Mirroring for Android
- Yes (via Wi-Fi or HDMI)
- Android Music Playback
- Yes (via Bluetooth(R))
iPod/iPhone Control

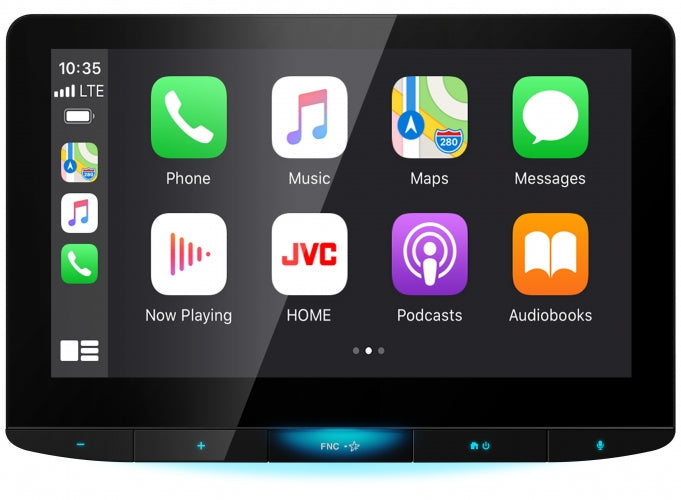

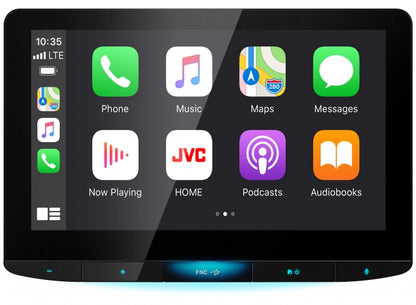

- CarPlay[3]
- Yes (via Wi-Fi or USB)
- Mirroring for iPhone
- Yes (via HDMI)
- iPod/iPhone Music Playback
- Yes (via USB or Bluetooth(R))
USB
- USB Port
- x 2 (High Speed)
- Position
- Rear
- USB Power Supply
- Yes (1.5A High Current Charging)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory)
- Yes
Radio Tuner
- SiriusXM Ready
- Yes *SiriusXM 360L Ready
- Radio Broadcast Data System (RBDS)
- Yes
- Preset Stations
- 20(FM:15ch, AM:5ch)
- Auto Memory Entry
- Yes
- FM
- Frequency Range
- 87.9 - 107.9MHz
- AM
- Frequency Range
- 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear)
- 50Wx4
- Full Bandwidth Power (Front & Rear)
- 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (8Preset + 4user)
- Bass Boost
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- 3-Way X'over
- Yes
- High-Resolution Audio
- Yes
- K2 Technology
- Yes
- Space Enhancement
- Yes
- Sound Response
- Yes
- Sound Lift
- Yes
- Volume Link EQ
- Yes
- Time Alignment
- Yes
- Dual-Zone Function
- Yes
Inputs and Outputs
- AV Input
- mini jack + RCA Video(AV-IN or CAM4 switchable)
- Video Out
- RCA
- HDMI Terminal
- Yes
- Rear view camera Input
- Yes
- Front view camera Input
- Yes
- 3rd Camera Input
- Yes
- Line Output Terminals
- 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance
- 5.0V / 10k ohms
- Subwoofer Output with Level/Frequency Control
- Yes
General

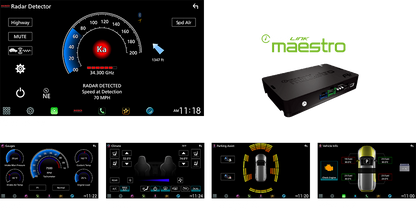

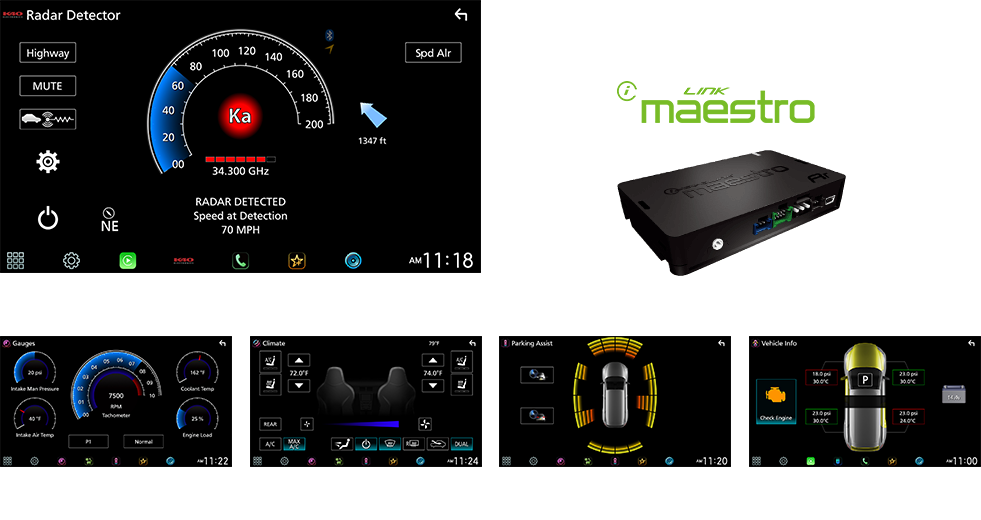

- iDatalink Maestro Ready
- Yes
- JVC Portal App
- Yes
- Remote Control Application
- Yes
- Back Up Memory
- Yes
- Face Type
- Viewing Angle Adjustment
- Yes (0 - 20 degree, default : 0 degree) 4 steps
- Wireless Remote Control
- Ready (RM-RK258 required)
- Steering Remote Control Ready
- Yes
- Learning Direct OEM Remote
- Yes
- Dimensions (W x H x D)
- Installation Size
- 7" x 3-15/16" x 6-2/16" (178 x 100 x 155 mm)
- Weight
- 7.28 lbs. (3.25kg)
